Review network payload data

Learn how to review network payload capture data after your test session so you can inspect payload data and response times.

Before you start

You’ll need to complete a manual session or an automation session with network payload capture enabled.

In Kobiton, select Sessions.

Select the Sessions tab

Find a session, then select the session in the search results.

Once you select your session, the Session Explorer page will appear.

Select the Explorer tab

In Session Explorer, select Device Network Payloads.

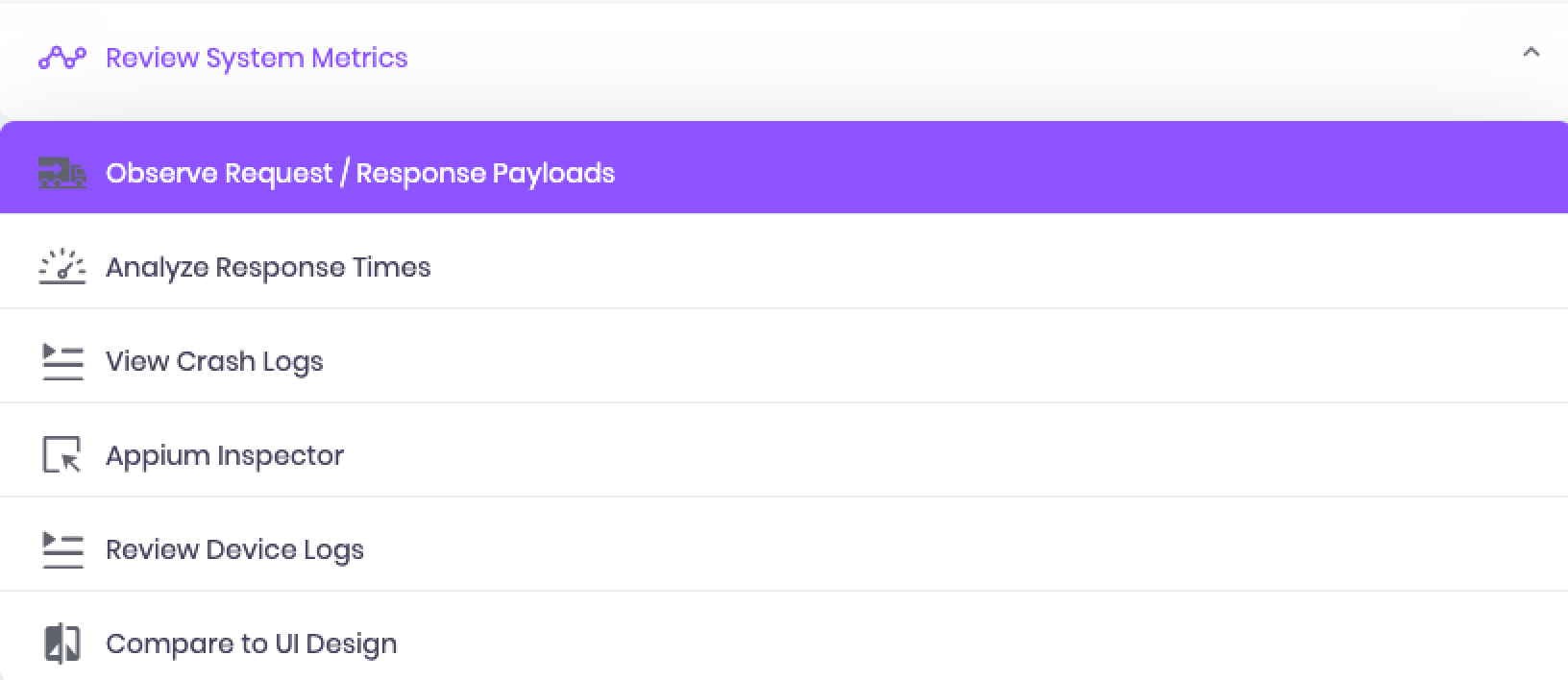

Select Device Network Payloads

Only manual and automation sessions that were run with a custom configuration on a NPC-enabled devices can have network payload data.

In the session timeline, select a purple marker to see the list of payloads sent and received during that time.

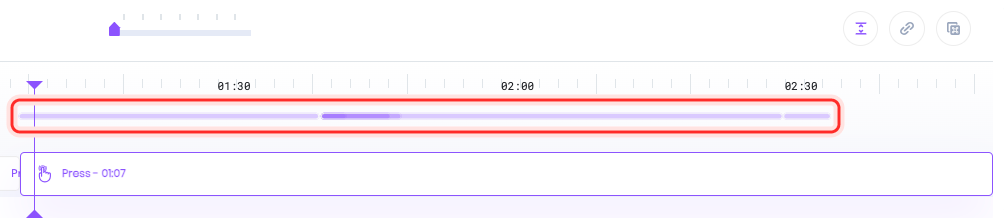

Capture payload indicator

The package name and size are listed in the Response row.

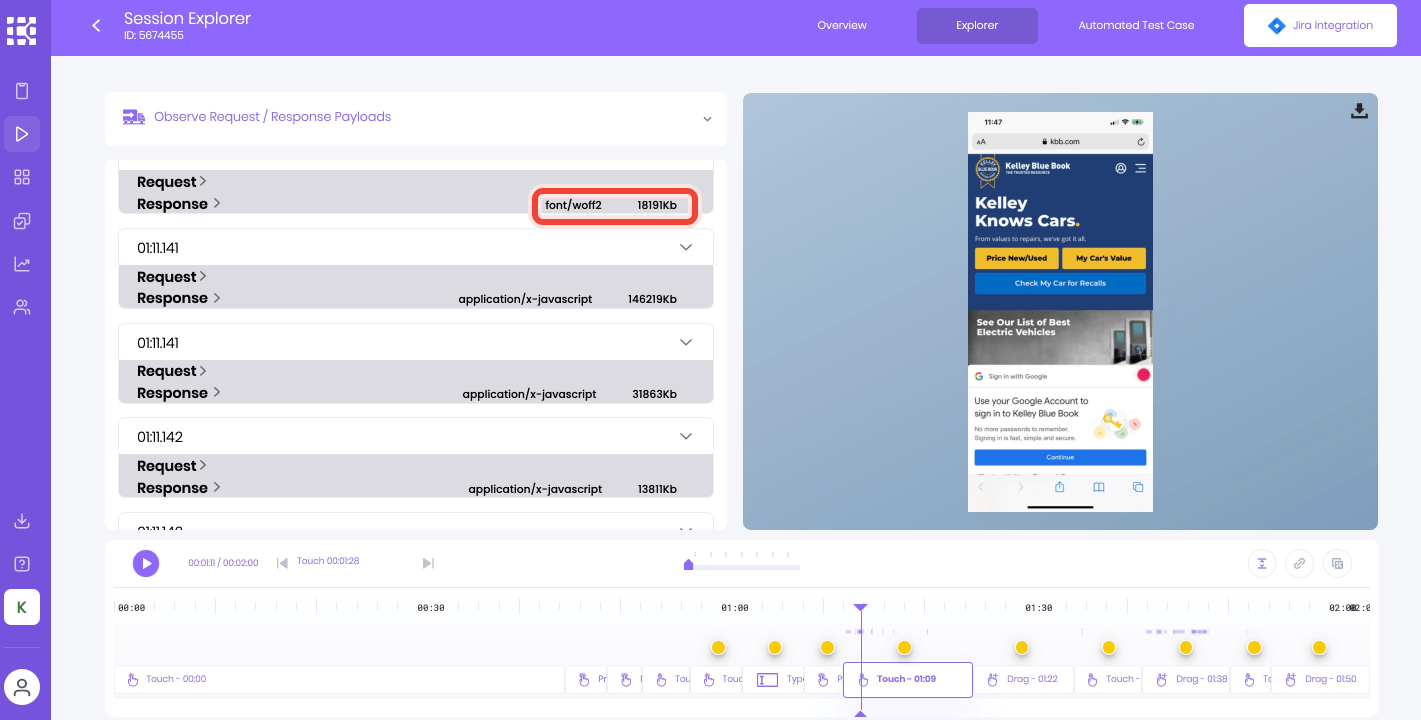

See the package name and size listed in the Response row

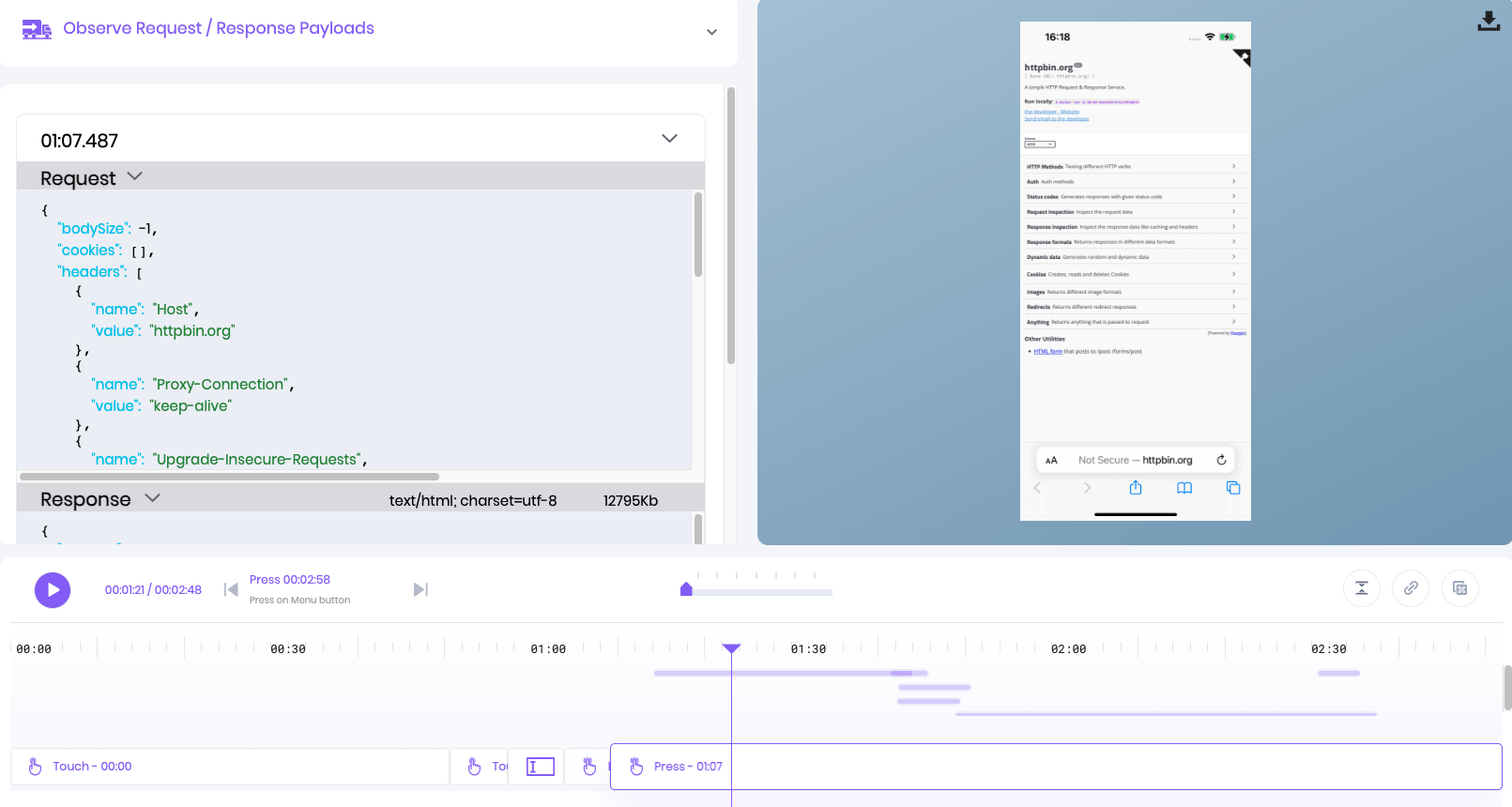

To see more details, select the Request or Response dropdown.

In Session Explorer, select Response Time Analysis.

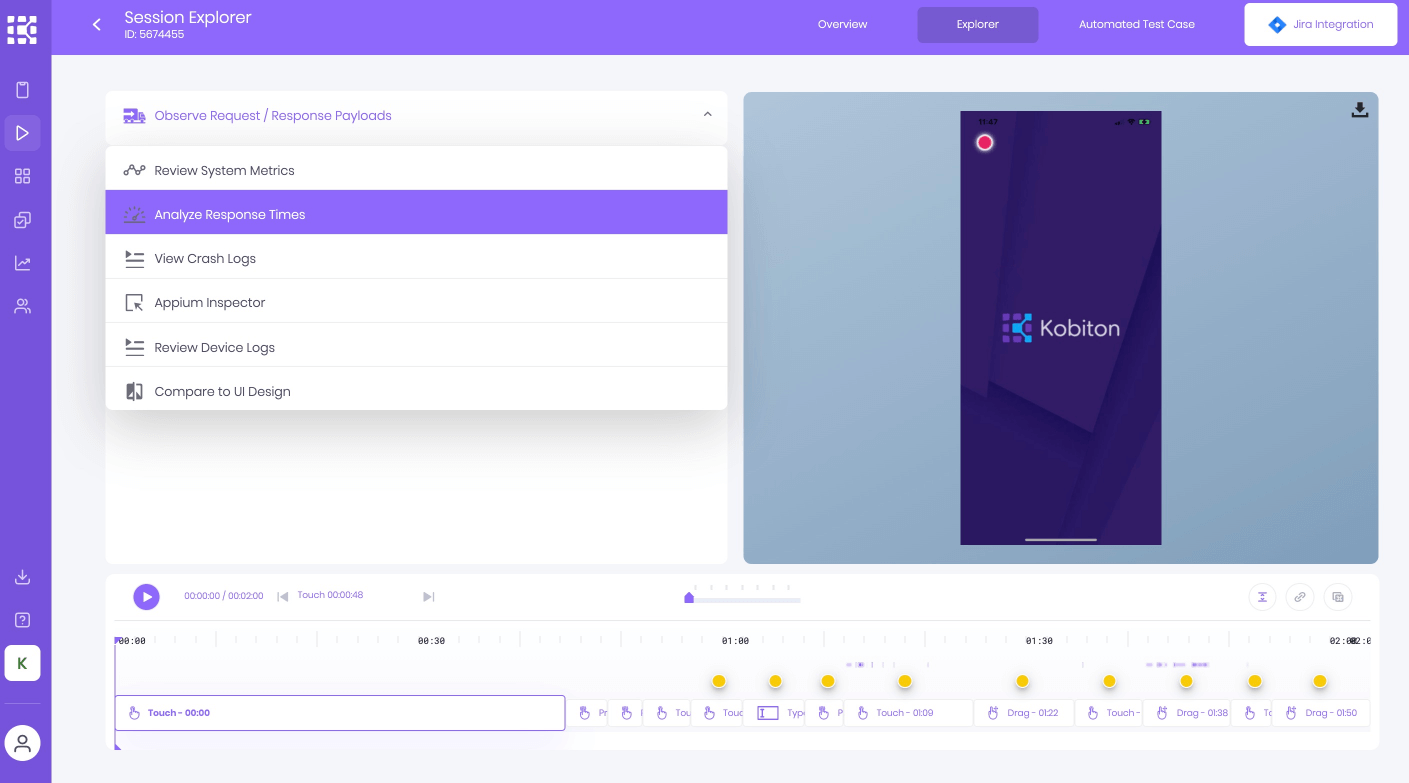

Select Response Time Analysis

In the graph, select a green or red marker.

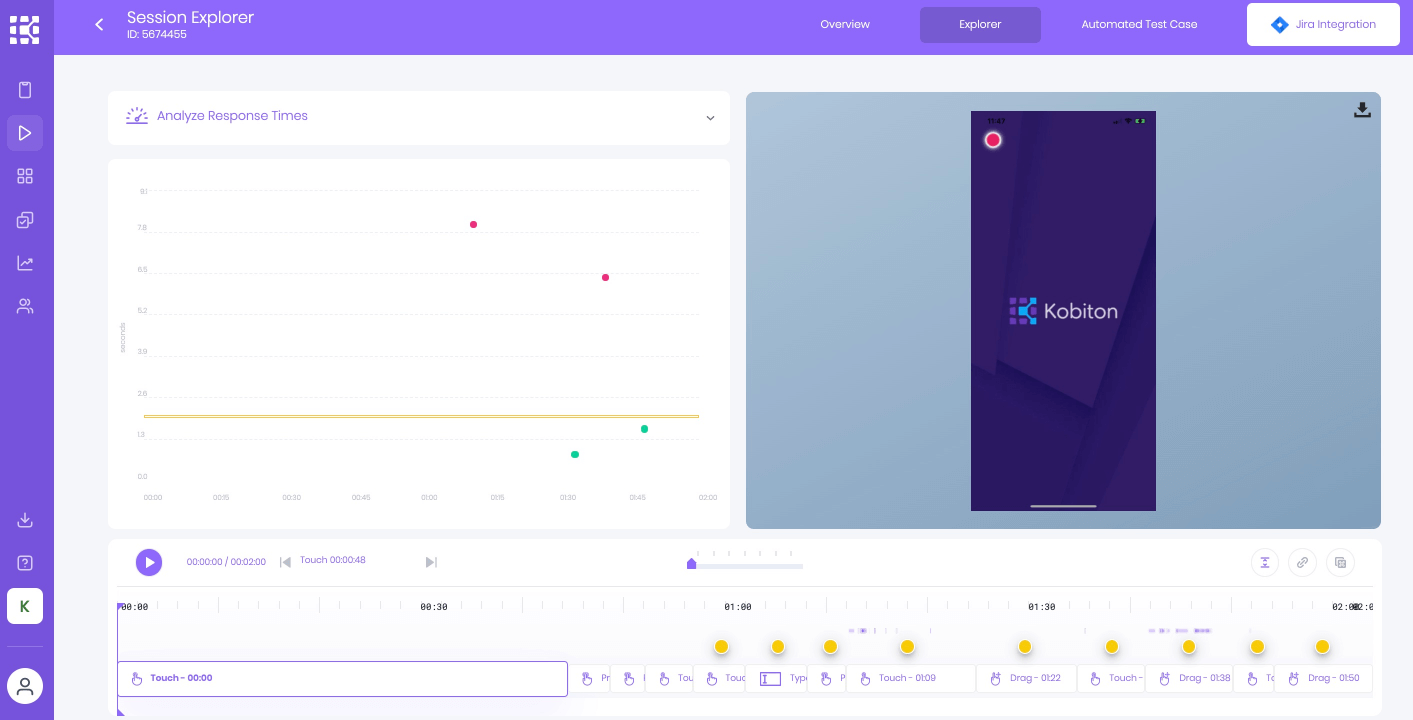

Select red or green dots

To see that test step in the session timeline, select Jump to step.

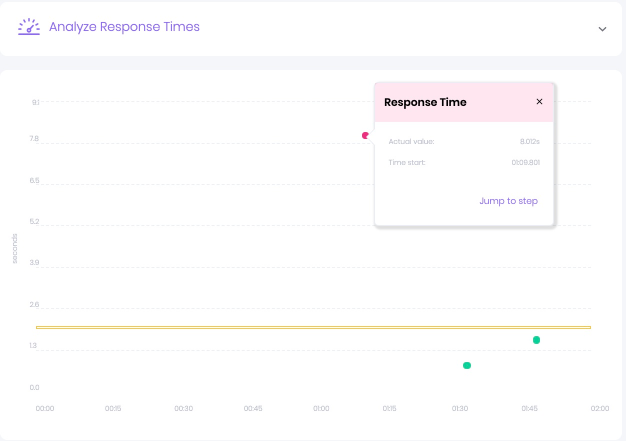

Select Jump to step when clicking on a red dot
